Open Output in Wolfram System Modeler

The translation files located in the 'output' folder can be opened in any Modelica IDE. Wolfram System Modeler will be used for this example.

Before you start

Make sure that:

You have cloned the repository.
Install Wolfram System Modeler.

How to load and validate a model

We validate the model to make sure we have valid code recognized by the Modelica Specification.

Open System Modeler
Start -> All apps -> Wolfram System Modeler - Wolfram System Modeler 14.0
Open IEEE14
File -> Open ... Find 'ieee14.mo' in the 'XSLTConferencePaper/output' folder.

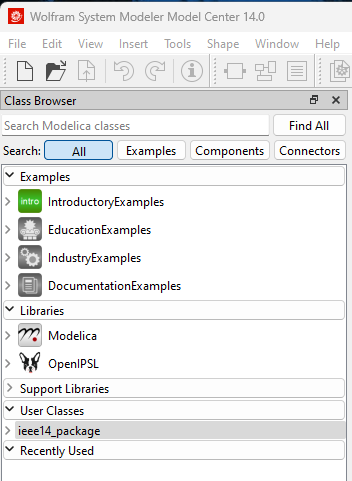

Locate 'ieee14_package' under 'User Classes'. Tip it over and double-click 'ieee14'.

The documentation screen will open. It can be closed

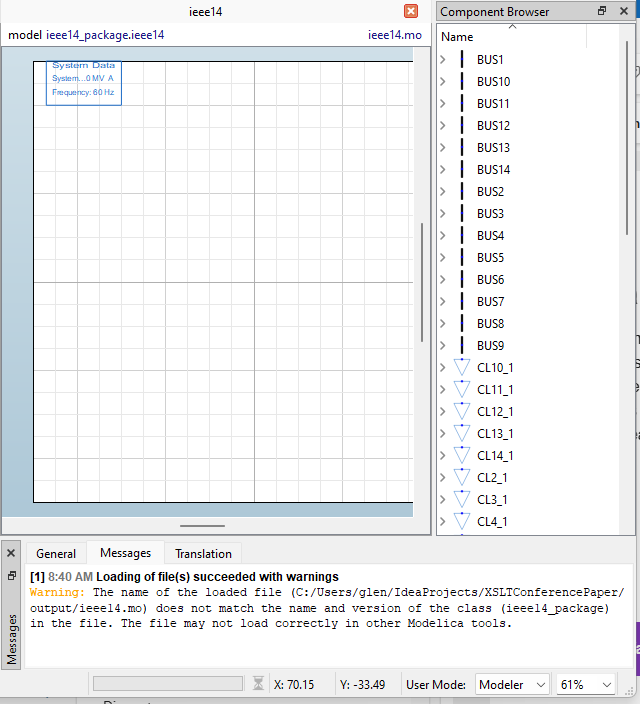

The Component Browser has buses, loads, lines, generators, shunts, and transformers. It also has System Data and a Fault.

Click the 'Validate' button.

It will take a few seconds until the following 'Translation' feedback is provided.

5 9:04 AM Validation of ieee14 started
The result will become available in this view once the validation is completed.

6 9:05 AM Validation of ieee14 finished
Warning: C:\Users\glen\IdeaProjects\XSLTConferencePaper\output\ieee14.mo 258:48-258:55 Malformed annotation (expected <libName>(version = <ver>)): uses(Complex)
Notification: The initialization problem is underdetermined, the following variables were chosen to be initialized from their start values: gen2_1.stabilizer.rampTrackingFilter.TF2 1 .x 1 , gen2_1.stabilizer.rampTrackingFilter.TF1 5 .x 1, gen2_1.stabilizer.rampTrackingFilter.TF1 3 .x 1 , gen2_1.stabilizer.rampTrackingFilter.TF1 2 .x 1 , gen2_1.stabilizer.rampTrackingFilter.TF1 1 .x 1 , gen2_1.stabilizer.Leadlag1.TF.x 1 , gen1_1.stabilizer.rampTrackingFilter.TF2 1 .x 1 , gen1_1.stabilizer.rampTrackingFilter.TF1 5 .x 1 , gen1_1.stabilizer.rampTrackingFilter.TF1 3 .x 1 , gen1_1.stabilizer.rampTrackingFilter.TF1 2 .x 1 , gen1_1.stabilizer.rampTrackingFilter.TF1 1 .x 1 , gen1_1.stabilizer.Leadlag1.TF.x 1
Notification: The start value for gen2_1.stabilizer.rampTrackingFilter.TF1 4 .x 1 was not used, since higher priority was given to the start value of gen2_1.stabilizer.Leadlag1.TF.x 1 .
Notification: The start value for gen1_1.stabilizer.rampTrackingFilter.TF1 4 .x 1 was not used, since higher priority was given to the start value of gen1_1.stabilizer.Leadlag1.TF.x 1 .
Validation of model ieee14_package.ieee14 completed successfully.
The model is globally balanced.
There are 720 equations in the transformed integration problem.
Among these, 691 equations are trivial.
